Portable Air Cooled AC Load Bank With Copper Conductor For Power Plant

Hebei Kaixiang Electrical Technology Co., Ltd
Contact Now

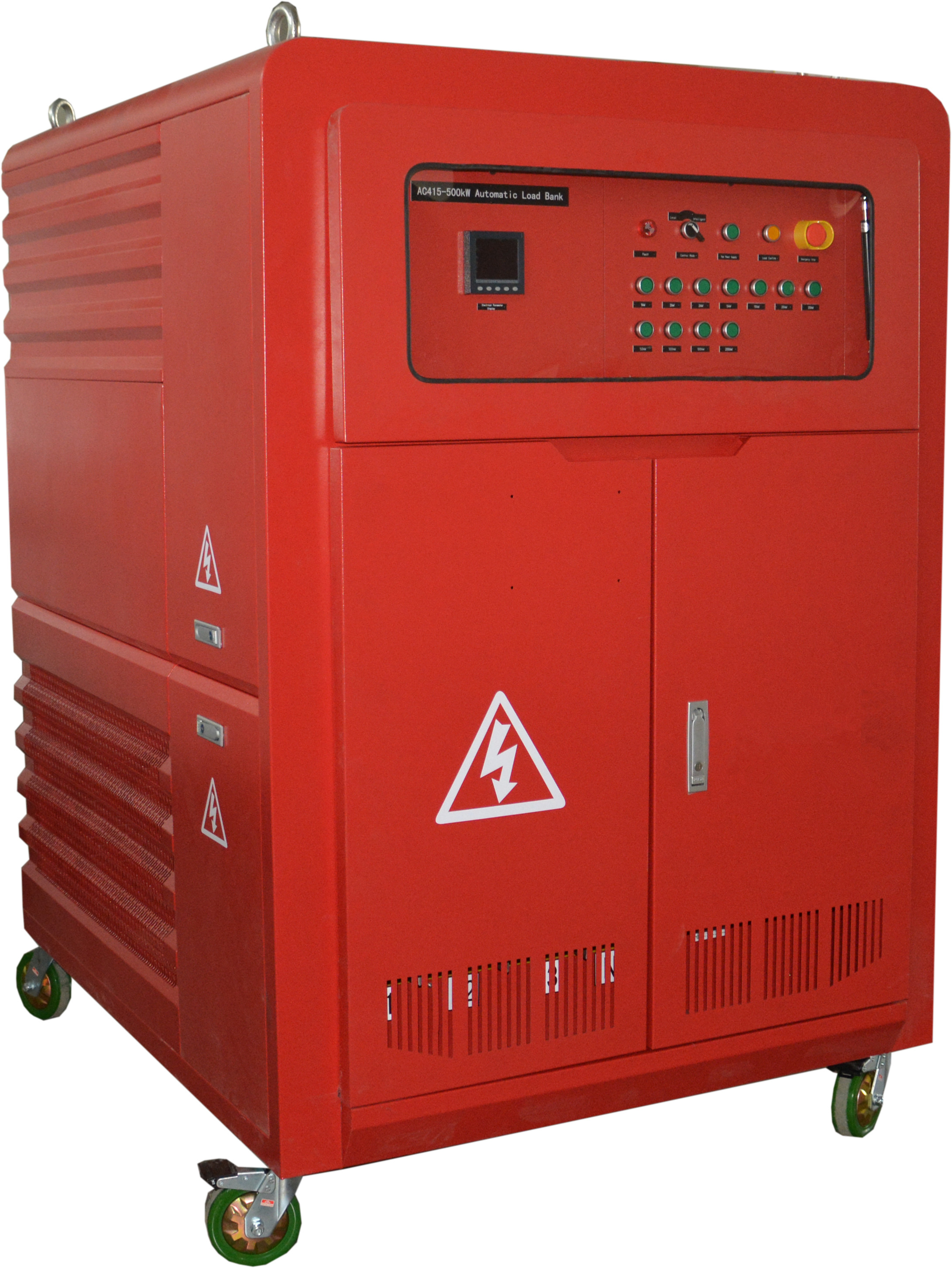

Portable Air Cooled AC Load Bank With Copper Conductor For Power Plant

  • 1
  • 2

Brand Name : KAIXIANG

Model Number : 1000KW

Certification : ISO9001

Place of Origin : HEBEI CHINA

MOQ : ONE SET

Price : negotiable

Payment Terms : L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram, D/P

Supply Ability : 20 SETS ONE MONTH

Delivery Time : ONE MONTH AFTER GET DEPOSIT

Packaging Details : WOODEN CASE

Rating Voltage : 400VAC/50Hz, 3 phase 4 wire

Rated Load Power : Resistive load: 1000kW

Rated Voltage : 400 VAC

Installed Capacity : Resistive load: 1000kW

Load Tolerance(overall) : ±3%

Control Power : 380VAC/50Hz, 3 phase 4 wire, 230V 1-phase

Contact Now

Portable Used AC Load Banks 1000KW With Copper Conductor For Power Plant

Product Description


1. our load bank an accurately test output power and load capacity with all kinds of generators.
2. System consists of testing/control and load bank, mainly includes AC load bank, data capture system, auto load/unload control system, heat dissipation device, assist control and PC software.
3. User can control load bank through local control panel, also through software

Technical Parameters

Rating Voltage/Frequency400VAC/50Hz, 3 phase 4 wire,
Rated Load PowerResistive load: 1000kW
Installed CapacityResistive load: 1000kW
Load Step1,2,2,5,10,20,20,50,100,200,200,200,200kW, min step load: 1kW
PF(Power Factor)1
Load Tolerance (each step)±5%
Load Tolerance(overall)±3%
Display Precision0.5 class
Control Power380VAC/50Hz, 3 phase 4 wire,
Wire Connection

Load power supply input——Copper bar (star coupling)
Control power supply input——Connector-bar

InsulationF
Duty CycleContinuous
Casing Dimensions and Coolingabout 1680*2400*1440mm (length*width*height) Forced air cooling,Horizontal inlet air,Horizontal outlet air
WeightAbout 1200kgs/set
TransportationHoisting, there are lifting lug in top of casing
Casing ColorGrey(RAL7035)
Ambient Temperature-10℃~+50℃
Relative Humidity≤95%
Altitude≤1500 meter
Atmospheric Pressure86~106kPa
ContactorSchneider
FuseDELIXI
MCUINFINEON
Data processing softwareKaixiang(self-developed)
Alloy ResistanceKaixiang(self-developed)


Product Advantage

Control mode interlock: there is switch in control panel to choose control mode, other control mode is invalid if user choose one control mode.
With data processing software, could form curve of current, active power, reactive power, apparent power, power factor, frequency and can be printed.
One-key load/unload: user can load or unload with one key easy to control.

Application

As the generator loading system
Periodic running test for standby generator
UPS inspection and maintenance
Ship battery charging/discharging system testing
The acceptance of new system and testing of servicing equipment
